Wave Motion and the Speed of Sound

Learning Objectives¶

By the end of this chapter, you should be able to:

• Distinguish transverse from longitudinal waves and identify which each of a string, an air column, and a drumhead supports.

• Apply the relation $v = f\lambda$ to find any one of wave speed, frequency, or wavelength given the other two, and explain which of the three a musician changes when playing a different note.

• Explain why the speed of a wave is set by the medium rather than by the source, and predict what happens to frequency and to wavelength when a sound crosses from one medium into another.

• Calculate the speed of sound in air as a function of temperature, and estimate the pitch error a wind instrument suffers when it is played cold.

• Compare the speed of sound in gases, liquids, and solids using the stiffness-to-density ratio, and explain why sound travels faster in helium than in air.

• Define sound intensity, apply the inverse-square law to a point source in the open air, and explain why it fails indoors.

• Define acoustic impedance and explain, in terms of impedance mismatch, why very little sound crosses from a vibrating string directly into air.

• Describe the Doppler effect for a moving source and for a moving listener, calculate the shifted frequency, and identify where it is heard in music.

Introduction¶

Chapter 1 left a vibrating object pushing on the air next to it. This chapter follows what happens next.

The answer is not obvious. The sound arrives at your ear far faster than any air could get there, and the air that arrives is not the air that left. A trumpet player thirty meters away blows a note, and a fifteenth of a second later you hear it, but the breath that made it is still in the trumpet. Something crossed the room, and it was not a substance.

What crossed the room was a wave, and this chapter is about how fast it goes, what it looks like on the way, and what happens to it as it spreads. Three results will be used constantly for the rest of the book. The first is the relation $v = f\lambda$, which connects the frequency a musician cares about to the wavelength the physics cares about. The second is that the speed $v$ is a property of the medium, not of the source, not of the frequency, not of how loud the sound is, so an orchestra stays together and a cold clarinet plays flat. The third is that sound spreads out, and spreading has a cost, which is the beginning of the story of why instruments need bodies and bells at all.

2.1From a Vibration to a Wave¶

How a Disturbance Propagates¶

Return to the row of people standing shoulder to shoulder. Shove the first one and a shove travels down the line. Two questions are worth asking about it.

What decides how fast the shove travels? Two things. If the people are stiff, they resist being compressed and push back hard: the shove passes quickly. If they are heavy, hard to get moving, it passes slowly. Nothing else matters: not how hard you shoved, not how often you shove, not how far down the line you look.

What decides how far the shove goes? In an idealized line, nothing; it goes forever. In reality some energy is lost to friction at each step, and the shove fades. Both effects have acoustic counterparts, and the first, speed set by stiffness and inertia, is the one that runs this chapter.

The same reasoning applies to air. Air is stiff because compressing it raises its pressure, and it has inertia because it has mass. The ratio of those two properties fixes the speed of sound, and §2.3 makes the statement quantitative.

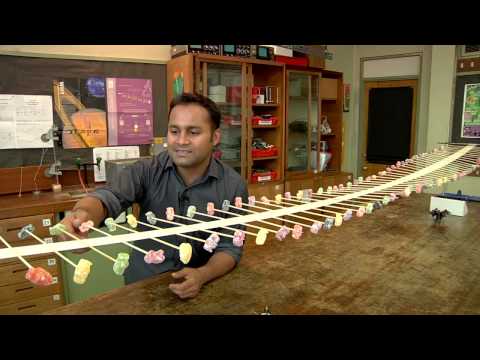

Transverse and Longitudinal¶

Two kinds of wave appear throughout this book, and every instrument uses both.

The distinction is not cosmetic. It determines what a wave can do: only transverse waves can be polarized, so light can and sound cannot. It also determines what has to happen at a boundary between the two. That handover, from the transverse motion of a string to the longitudinal motion of air, turns out to be the hardest engineering problem in the design of a string instrument, and §2.4 explains why.

The Wave Pulse and the Periodic Wave¶

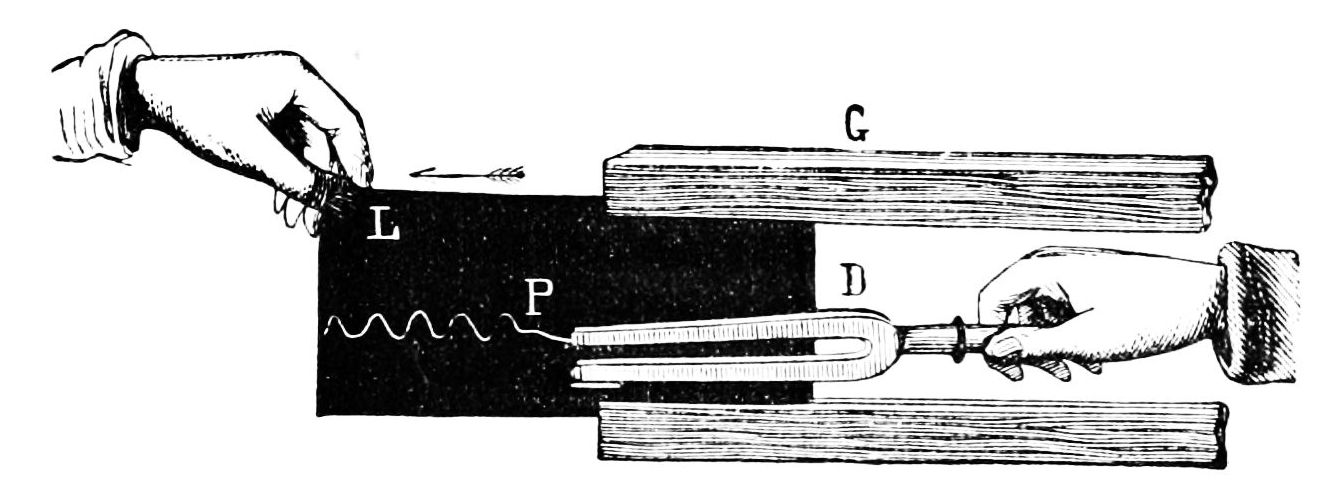

Shove the row of people once and a single pulse travels down it. Shove them rhythmically and a periodic wave travels instead: a repeating pattern, moving at the same speed the single pulse would have moved.

A handclap is a pulse. A sung note is a periodic wave. Musically the periodic case is the interesting one, but the pulse is the more fundamental: a periodic wave is what you get by sending pulses one after another, and its speed is the pulse speed. The speed does not know or care about the frequency. This is worth stating plainly because it is the single most useful fact in the chapter, and because the exceptions to it, media in which speed does depend on frequency, called dispersive media, are rare in air and consequential when they occur. A piano string is mildly dispersive, and Chapter 10 shows that this small fact is why pianos are tuned the way they are.

2.2Wavelength, Frequency, and Wave Speed¶

The Relation $v = f\lambda$¶

A periodic wave has a repeating pattern in space as well as in time. The wavelength $\lambda$ is the distance between one crest and the next; the period $T$ is the time between one crest and the next passing a fixed point.

In one period, the wave advances exactly one wavelength. So its speed is

That is the whole derivation, and the equation carries an enormous amount of this book.

Notice the sizes. Musical wavelengths in air are comparable to the dimensions of rooms and of people: a low A on a bass is about eight meters long, middle C about 1.3 m, and the top note of a piccolo about 8 cm. Sound therefore bends around corners and light does not; bass notes are hard to control in a small room (Chapter 14); and a loudspeaker that is small compared with a wavelength radiates in all directions while one that is large does not.

A Wave Crossing a Boundary¶

When a wave passes from one medium into another, one of its three quantities is forced to stay the same and the other two must adjust.

Frequency is conserved. The far side of the boundary is driven by the near side, wiggle for wiggle; the boundary cannot swallow cycles or invent them. Whatever the frequency was, it still is.

Speed changes, because the speed belongs to the medium.

Wavelength therefore changes too, since $\lambda = v/f$ with $f$ fixed.

Sound entering water from air quadruples its wavelength, because water carries sound over four times as fast. A singer’s note does not become a different note when it reaches a listener underwater; it is the same pitch, stretched out in space.

The Wave Equation¶

Everything above can be compressed into one statement, which is the standard starting point of a more mathematical treatment. Any disturbance $y(x,t)$ that travels at a fixed speed $v$ without changing shape satisfies

This is the wave equation. Nothing in the rest of this book requires it, and it will not be used again in the main text; it is stated so the derivation can answer the question “why is the speed what it is?”

2.3What Sets the Speed of Sound¶

Stiffness and Inertia¶

The pattern of the dropdown above is general. For any medium,

where “stiffness” is whatever resists the deformation the wave makes, and “density” is whatever has to be accelerated. For a string it is tension over mass per unit length. For a gas it is the bulk modulus over the mass density. For a solid bar it is Young’s modulus over density.

Two consequences follow immediately, and both are counterintuitive on first meeting.

Denser is slower, other things being equal. Heavier things are harder to shake. Sound travels faster in helium than in air not because helium is thinner in some vague sense but because it is about seven times less dense while being similarly stiff.

Stiffer is faster, and stiffness wins. Steel is eight thousand times denser than air, and sound travels through it seventeen times faster, because steel is some two million times stiffer. When a medium is both denser and stiffer, the stiffness usually wins by more.

Sound in Air, and the Temperature Dependence¶

For air at ordinary temperatures, the speed of sound is very nearly

with $T$ the temperature in degrees Celsius. At 0 °C sound travels at 331 m/s; at 20 °C, at 343 m/s; at 35 °C, at 353 m/s.

The dependence is on temperature and essentially nothing else. Air pressure does not appear, which surprises people: raising the pressure makes air both stiffer and denser, in the same proportion, and the two effects cancel exactly. Humidity has a small effect, moist air is very slightly faster, because water molecules are lighter than the nitrogen they displace, but it is a fraction of a percent and rarely matters.

Temperature matters a great deal, because a wind instrument’s sounding length is fixed and its pitch follows the speed of sound directly.

Sound in Liquids and Solids¶

Sound travels about 1482 m/s in water, some 4.3 times its speed in air. In solids it is faster still, and in a wooden soundboard it depends sharply on direction: along the grain of spruce, about 3800 m/s; across the grain, about a quarter of that. Instrument makers have exploited this for centuries without needing the number: a soundboard is cut so the grain runs the length of the instrument, because that is the direction along which vibrations must be distributed quickly.

2.4Sound Spreading in Three Dimensions¶

Intensity and the Inverse-Square Law¶

So far the wave has been drawn as though it traveled along a line. In the open air it does not: it spreads out in all directions, and spreading dilutes it.

Intensity $I$ is the power carried by a wave per unit area, in watts per square meter. A source radiating power $P$ uniformly in all directions spreads that power over a sphere, so at distance $r$

This is the inverse-square law, and it is a statement about geometry rather than about sound: double the distance and the same power is spread over four times the area, so the intensity falls to a quarter. In the units of Chapter 7 that is a drop of 6 dB per doubling of distance.

The indoor case is the more common one in music, and the difference is worth stating plainly: inside a room, the inverse-square law fails beyond a few meters. Someone at the back of a concert hall is not hearing a sound 40 dB weaker than the front row; they are hearing a sound perhaps 8 dB weaker, most of which has bounced off something.

Directivity: Why Instruments Do Not Radiate Evenly¶

The inverse-square law assumed a source radiating equally in all directions. Real instruments do no such thing.

The controlling quantity is the size of the source compared with the wavelength. A source much smaller than a wavelength radiates nearly uniformly, it has no way to favor one direction, because the whole of it is effectively at one point as far as the wave is concerned. A source much larger than a wavelength beams: the different parts of it interfere, and the sound goes mostly where they all agree.

Since instruments are fixed in size and wavelength shrinks as pitch rises, every instrument becomes more directional at high frequencies. A trumpet’s low notes spill around the hall; its high notes go where the bell points, so a trumpet sounds quite different from the side. A cello radiates low notes in all directions and high notes in a complicated pattern of lobes. Recording engineers know this as microphone placement: moving a microphone 30 cm can change a recorded timbre more than changing the microphone does.

Acoustic Impedance and the Coupling Problem¶

There is one more property of a medium that matters, and it explains a puzzle raised in Chapter 1: why is a vibrating tuning fork almost silent until you touch it to a table?

Acoustic impedance measures how hard a medium is to set moving: the ratio of the pressure applied to the flow that results. A stiff, dense medium like steel has a high impedance: large pressures produce small motions. A light, springy medium like air has a low one: small pressures produce large motions.

Sound crosses a boundary efficiently only when the impedances on the two sides are similar. When they are very different, almost all of the energy reflects and almost none is transmitted. The mismatch between a solid and air is enormous, and the consequence is that a thin vibrating object, a string, a tine, a reed, is a terrible radiator of sound. It shakes the air, the air offers almost no resistance, and hardly any energy is handed over.

Every acoustic instrument is, in large part, a solution to this problem. A soundboard is a large light surface that presents an impedance intermediate between string and air. A brass bell is a gradual flare that converts a narrow high-impedance column into a wide low-impedance one. The middle ear, remarkably, is a mechanical lever-and-piston arrangement solving the same problem in reverse, matching air to the fluid of the inner ear (Chapter 6).

2.5The Doppler Effect¶

Moving Source, Moving Listener¶

If the source of a sound is moving, the wavefronts it leaves behind are not evenly spaced. Each crest is emitted from a slightly different place, so ahead of the source they are bunched closer together and behind it they are stretched further apart.

Since frequency is crests per second, a listener ahead of the source hears a higher frequency and one behind hears a lower one:

with the minus sign for a source approaching and the plus sign for one receding. If instead the listener moves and the source is still, the formula is $f' = f(v \pm v_l)/v$: a different expression, because the two cases are physically different. A moving source changes the wavelength in the air; a moving listener does not, and merely meets the existing crests at a different rate.

The Rotating Loudspeaker¶

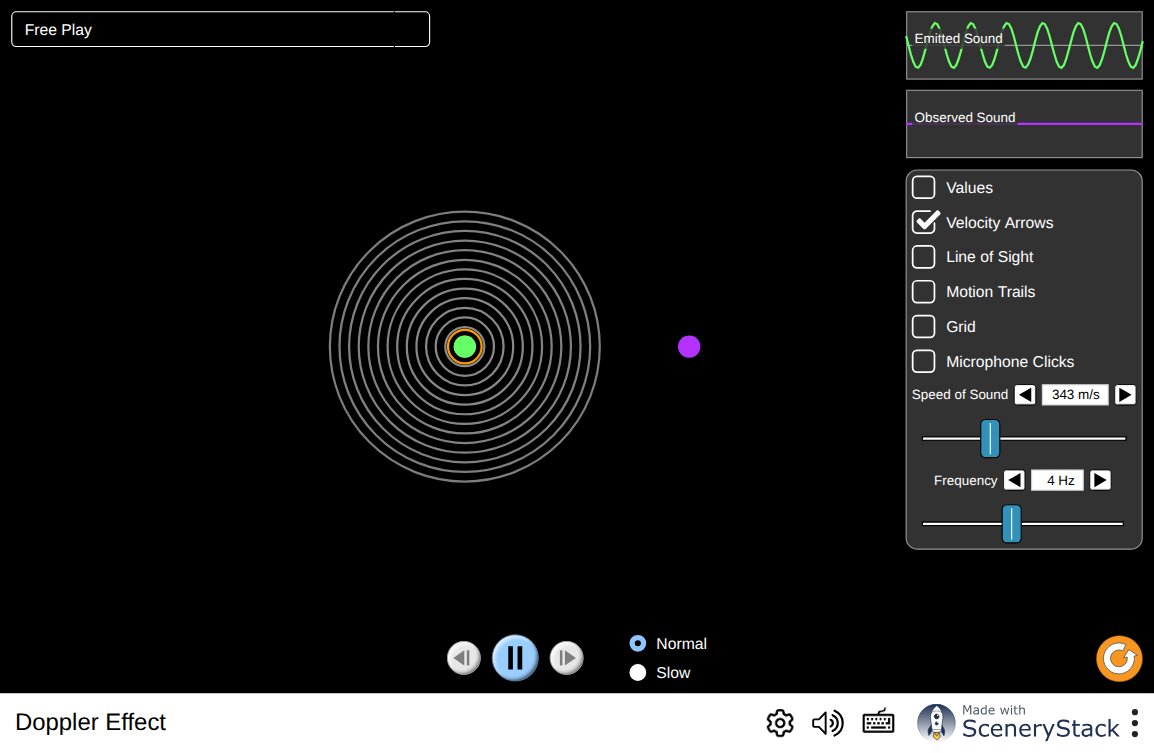

The Doppler effect has one deliberate musical use, and it is a good one. A Leslie speaker, built for the Hammond organ, mounts a loudspeaker on a rotating baffle so that the source is continuously swinging toward and away from the listener. The result is a rich, swirling modulation of both pitch and loudness, quite unlike the flat vibrato of an electronic oscillator, and it became the characteristic sound of an entire era of organ playing.

What makes it sound organic rather than mechanical is that the modulation is not a simple oscillation. The pitch shift depends on the component of the source’s velocity along the line to the listener, which varies as a sinusoid; the loudness depends on distance and on the direction the horn happens to be facing; and the room adds reflections that arrive with their own, different, modulations. The effect is a mixture of many slightly different versions of the same swirl.

Why a Passing Siren Falls and a Vibrato Does Not¶

A final observation that ties the section to music. A string player’s vibrato rocks the finger back and forth, changing the string’s sounding length and therefore its frequency, several times a second. The pitch really does go up and down. A Doppler shift would do something similar; so why does a violinist’s vibrato not sound like a passing ambulance?

Two reasons. The vibrato’s excursion is small, a few tens of cents rather than a few hundred, and it is periodic: it returns, several times a second, to the note it started from. The ear tracks the average and hears a single pitch with a shimmer on it. The siren’s shift is large and monotonic, it goes down and stays down, so the ear has no average to settle on and hears the change itself. Chapter 8 takes up the question of what the auditory system does with a frequency that is moving.

2.6Summary¶

• A wave carries a disturbance, not matter. Its speed is set by the medium, through $v = \sqrt{\text{stiffness}/\text{density}}$, and not by the source, the frequency, or the amplitude.

• Transverse waves move the medium across the direction of travel; longitudinal waves move it along. Strings carry the first, air the second, and the handover between them is the central design problem of a string instrument.

• $v = f\lambda$ follows from the observation that a wave advances one wavelength per period. Musical wavelengths in air run from about 12 m to about 8 cm, comparable to rooms and to hands, so sound diffracts around everyday obstacles.

• Crossing a boundary conserves frequency, not wavelength: the far side is driven by the near side at whatever rate it is shaken. Speed and wavelength both change.

• In air, $v = 331.3 + 0.606\,T$ m/s, depending on temperature and essentially nothing else, not on pressure, and only slightly on humidity. A fixed-length pipe tuned at 20 °C is about 46 cents flat at 5 °C, so winds and strings drift apart as a hall warms.

• Intensity falls as $1/r^2$ in the open air, 6 dB per doubling of distance, because the same power is spread over a growing sphere. Indoors this fails beyond the critical distance, where reflected sound dominates.

• Instruments become more directional as pitch rises, because directivity is governed by source size compared with wavelength, and only the wavelength changes.

• Acoustic impedance governs how much sound crosses a boundary. The mismatch between solids and air is huge, so a bare string radiates almost nothing; soundboards, bells, and the middle ear all exist to bridge that gap.

• The Doppler effect shifts the frequency of a moving source to $f' = f v/(v \mp v_s)$, by bunching or stretching the wavefronts. A moving listener gives a different formula, because the physics is different.

2.7Check Your Understanding¶

Five short, auto-graded questions cycle within one compact activity. The set mixes multiple response, true/false, drag-the-words, fill-in-the-blank, and mark-the-words formats, and one question reads its answer off the speed-of-sound chart.

2.8Conceptual Questions¶

1. A trumpeter thirty meters away plays a note. Explain why you hear it a tenth of a second later even though no air travels from the trumpet to your ear.

2. Explain why the speed of sound in air depends on temperature but not on atmospheric pressure, given that both affect how tightly packed the air is.

3. A sound wave passes from air into water. State which of frequency, wavelength, and speed change, and justify the one that does not.

4. A soundboard is cut so that the grain runs along the length of the instrument. Explain the acoustic reason, using the figures for spruce in §2.3.

5. Two listeners stand 2 m and 8 m from a singer, outdoors. By how many decibels do their levels differ? Explain why the same pair of positions in a small room would differ by much less.

6. Explain why a trumpet sounds much brighter to a listener directly in front of it than to one standing beside it, and why the effect is stronger for high notes.

7. A vibrating tuning fork is nearly silent in the air but loud when its base touches a table. Explain this using impedance, and say where the energy goes in each case.

8. A police car passes you at constant speed with its siren on. Sketch the pitch you hear against time, and explain why the steepest part of the curve occurs at the moment the car is closest, rather than before or after.

2.9Problems¶
