11. Hydroelectric Energy¶

Energy has been harnessed from flowing water for ages. Milling operations were often located on streams so that water could turn a wheel attached to grinding machinery. Today, captured water flow is a significant contributor to electricity worldwide in the form of hydroelectricity. The U.S. gets about 2.8% of its current energy (and 7% of electricity) from hydropower. Globally, hydropower accounts for about 9% of energy, or 16% of electrical production (Table 7.2; p. 112).

Hydroelectricity taps into the solar-driven evaporation cycle, relying on the gravitational energy embodied in water lifted onto the land from lower bodies of water. In other words, solar energy lifts water, giving it gravitational potential energy, which is captured and converted to electrical energy.

While hydroelectric power is a simple and low-tech form of renewable energy that has been heavily exploited for over a hundred years, it is not one that is easy to expand beyond its current level of usage. This chapter will provide a better understanding of this mainstay of the renewable portfolio and its likely role in our future.

11.1 Gravitational Potential Energy¶

Gravitational force is incredibly weak. It may not seem so from daily experience, but consider the fact that a magnet held in your hand can lift a paperclip—overwhelming the gravitational pull of the entire earth! By comparison, electromagnetic forces are forty orders-of-magnitude stronger than gravitational force. We don’t tend to notice because electric charges tend to balance out so that gravity is the most obvious force in our daily lives.^[1]

We know intuitively that lifting a massive object requires work, and thus energy. In fact, since work is defined as a force times distance,^[2] and the force of gravity on an object follows Newton’s second law, $F = ma$,^[3] the force we need to exert on an object to lift it against gravity is called its weight, and is $W = mg$, where $g = 9.8 \mathrm{m/s}^{2}\approx 10 \mathrm{m/s}^{2}$ is the acceleration due to gravity on the surface of the earth. Thus, to lift an object through height, $h$, requires an energy input of this force, $W$, times the height, $h$. We call this gravitational potential energy since the energy put in to lift something can be released later if the mass is allowed to fall or be lowered. An early use of gravitational potential energy was in the form of weights on chains in old clocks.

Most commonly, gravitational potential energy is converted to kinetic energy as an object falls: slowly at first but accelerating as more potential energy is converted to kinetic energy while the object gains speed (see Fig. 5.1; p. 75). Only the vertical distance matters in computing gravitational potential energy: sideways motion does not operate against the gravitational force. Sliding a crate across a flat, level floor does take work to overcome friction, but that energy is converted to heat and cannot be later returned in useful form.^[5] In this case, the crate has gained no gravitational potential energy, since its height never changed.

11.1.1 Comparison to Other Forms¶

To give a flavor of how weak gravitational potential energy is compared to other familiar forms of energy storage, we will consider the energy content in a standard AA alkaline battery and in a similar volume of gasoline. So we’re talking about something approximately the size of a small finger. We want to know how much mass must be lifted to yield the same amount of gravitational potential energy as is contained in a battery or equivalent volume of gasoline. In the comparison, we will imagine having a hoist that can lift a large mass^[7] 4 m high—about house-height.

A standard AA battery cell has a charge rating of 2.5 Ah^[8] and operates at about 1.5 V. Following the development in Sec. 5.8 (p. 81), we multiply these two numbers to get 3.75 Wh, translating to 13.5 kJ. Equating this to $mgh$, where we know $g \approx 10 \mathrm{m/s}^{2}$ and $h = 4$ m, we find that $m \approx 340$ kg. That’s really heavy—about the mass of 4–5 people.^[9] Meanwhile, the AA battery is a puny 0.023 kg. Reflect for a moment on this comparison, visualizing 340 kg lifted 4 m above the ground providing the same amount of energy as a AA battery held in your hand.

Gasoline is even more extreme. At an energy density around 34 kJ per mL of volume, filling a AA-sized cup^[10] with gasoline yields about 250 kJ of energy.^[11] Performing the same computation, we would need to lift over 6,000 kg (6 metric tons) to a height of 4 m to get the same energy content. Typical cars have masses in the 1,000–2,000 kg range, so we’re talking about something like 4 cars! One caveat is that we are not typically able to convert the thermal energy in gasoline^[12] into useful work at much better than 25%, while gravitational potential energy can be converted at nearly 100%. Still, being able to lift 1,500 $\mathrm{kg}^{13}$ to a height of 4 m using the energy in 7 mL of gasoline is rather impressive, again emphasizing that gravitational potential energy is pretty weak. It only amounts to significance when the masses (volumes) of water are rather large.

11.2 Hydroelectric Energy¶

The basic idea behind hydroelectricity is that water in a reservoir behind a dam (Figure 11.2) creates pressure at the base of the dam that can force water to flow through a turbine that drives a generator to make electricity—sharing elements of Fig. 6.2 (p. 95) but spinning the turbine by water flow instead. The amount of energy available works out to be the gravitational potential energy corresponding to the height of water at the lake’s surface relative to the water level on the other side. It’s as if dropping the water from the surface to the turbine and asking how much potential energy it gave up in the process. In reality, water is not dropping from the lake surface, but the force on the water at the turbine is determined by the height of water above it: the “pressure head,” as it is called. The process is highly efficient, approaching 90% capture of the potential energy in the water delivered as electrical power from the generator.

The largest hydroelectric facility in the world is the Three Gorges Dam in China, rated at an astounding 22.5 GW. The largest in the U.S. is the Grand Coulee on the Columbia River, producing a maximum of 6.8 GW. The iconic Boulder Dam (a.k.a. Hoover Dam) is just over 2 GW.

Note that flow rates vary seasonally with rainfall, so that dams cannot always operate at full capacity. In fact, the U.S. has about 80 GW of capacity installed, but operates at an annual average of about 33 GW. This implies a typical “capacity factor” around 40%.

As we saw in Fig. 7.5 (p. 113) and Table 10.3 (p. 177), hydroelectricity in the U.S. accounts for 2.7% of the nation’s total energy consumption, corresponding to about 33 GW of production. Globally, hydroelectric production averaged 477 GW in 2017. By comparison, Table 10.2 (p. 175) indicates that 44,000 TW of solar input goes into evaporation and the hydrological cycle. Why, then, are we only able to use 0.477 TW (0.001%) of this bounty? Is this a great, untapped renewable resource?

11.2.1 Theoretical Potential¶

To understand the giant mismatch between solar input and hydroelectric development, we first need to study evaporation.

So let’s follow the energetics of a gram of water^[17] on its journey to a hydroelectric dam—most of which is represented in Figure 11.4. First, the sun injects 2,250 J to evaporate that gram. Then let’s say it gets lofted to 5 km.^[18] The gravitational potential energy, $mgh$, comes to $0.001 \times 10 \times 5000 = 50$ J. That’s only 2% of the amount that went into evaporation.^[19]

When the water condenses in the cloud, it releases 2,250 J of thermal energy into the cloud/air, then falls back to the ground as rain, offering 50 J of still-available energy. If it falls on the ocean, where it presumably started, it gives up all 50 J of gravitational potential energy into useless forms.^[20] But if it falls on land—higher than sea level—it retains some gravitational potential, based on how high that land is above sea level.

On average, terrain is about 800 m above sea level, so each gram that falls on land has an average of 8 J left as available energy. But only 29% of the earth’s surface is land, so that the gram of water we’re tracking preserves about 2 J of energy, on average.^[21]

We’re down to only 0.1% of the input solar energy—2 J out of 2,300 J input—so that the theoretical hydroelectric potential might be about 44 TW: reduced from the 44,000 TW input. But only a small fraction of rain flows into rivers suitable for damming. And once dammed, a typical dam height is in the neighborhood of 50 m, knocking us down even further. Much of the journey from terrain to reservoir involves losing elevation in streams too small to practically dam, or just seeping through the ground. In the end, perhaps it is not surprising that we end up in the sub-TW regime globally.

Detailed assessments [67] of hydroelectric potential globally estimate a technically feasible potential^[22] around 2 TW, but only half of this is deemed to be economically viable. Recall that 477 GW, or about 0.5 TW, is delivered globally, which is therefore about half of what we believe to be the practical limit of $\sim 1$ TW. Thus we might not expect more than a factor-of-two expansion of current hydroelectricity as possible/practical. The low-hanging fruit has been plucked already, capturing about half of the total practical resource.

Compared to the 18 TW global scale of energy use, hydroelectricity is not poised to assume a large share at this level, unless the overall scale of energy use is reduced substantially. Let’s say this more visibly: hydroelectric power cannot possibly come close to satisfying present global power demand.

11.3 Hydropower in the U.S.¶

Hydroelectric power is not available to the same degree everywhere. Geography and rainfall are key factors. This brief section serves to present a snapshot of the distribution and qualities of hydroelectric power generation in the United States. We start with Figure 11.5, showing the average hydroelectric power generated in each state, the top four states being listed in Table 11.1. These four states account for 56% of hydroelectricity in the U.S., and the next states on the ranked list drop to 1 GW or lower. Most of the California generation is in the northern part of the state, effectively as part of the Pacific Northwest region.

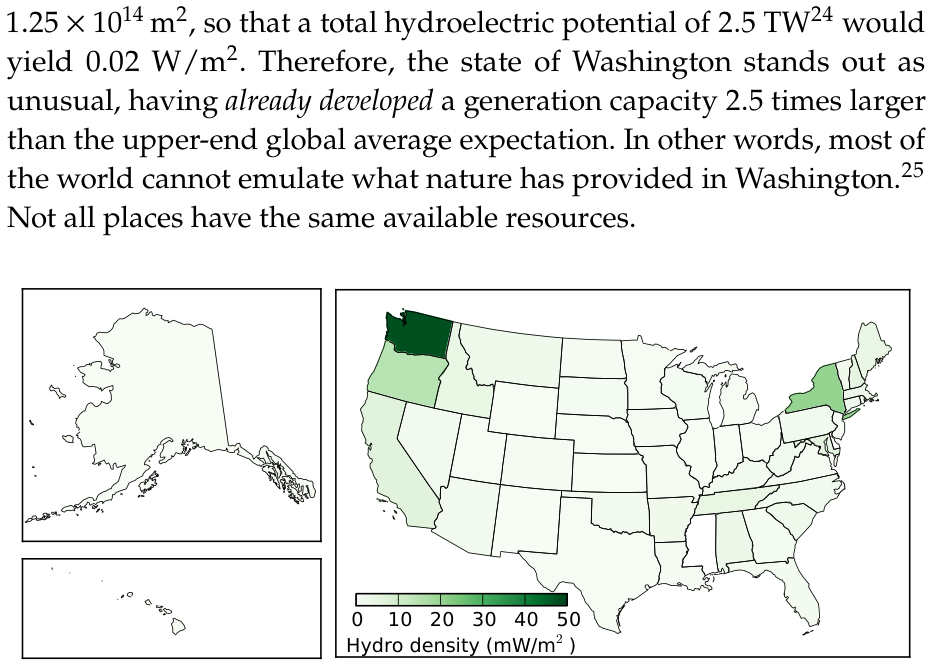

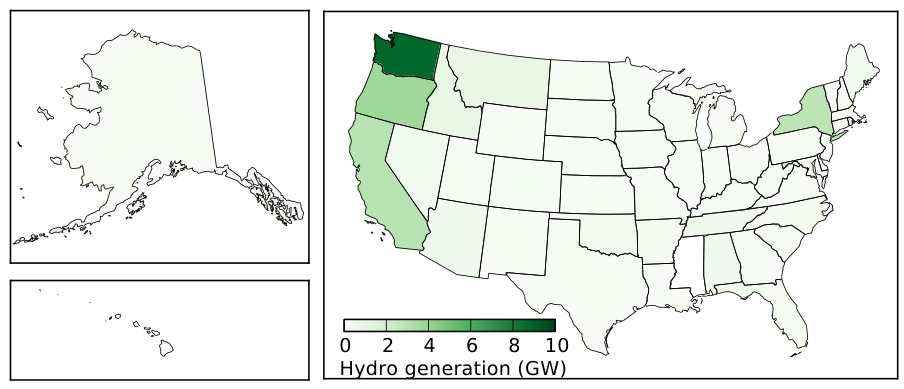

To get a sense for how concentrated different sources are, we will make a habit of examining power density for renewable resource implementations. Figure 11.6 indicates the state-by-state density of hydroelectric power generation,^[23] just dividing generation by state area. No state exceeds 0.05 $\mathrm{W/m}^{2}$, which can be contrasted to insolation values (see Ex. 10.3.1; p. 174) of $\sim 200 \mathrm{W/m}^{2}$. Globally, total land area is about

unusual, having already developed a generation capacity 2.5 times larger

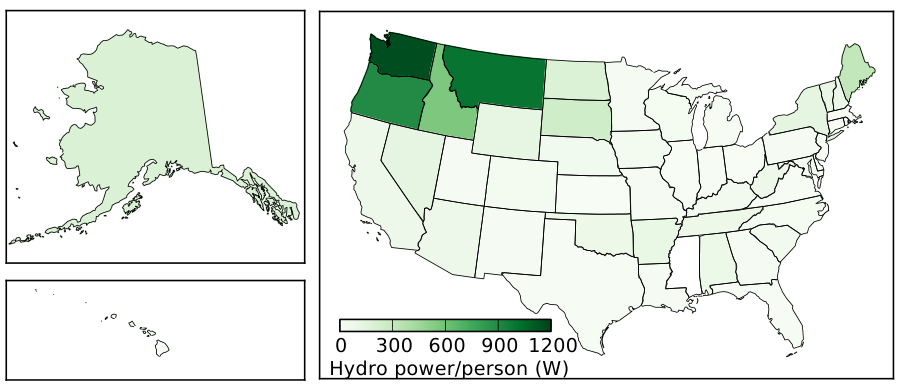

Next, we look at hydroelectric generation per capita. Figure 11.7 shows the result. In this view, the states of the Pacific Northwest really pop up, and New York dims relative to its by-area showing. The contrast between Figure 11.6 and Figure 11.7 is effectively reflecting population density: large, sparsely-populated states^[26] show up more prominently on the per-capita map than the per-area map.

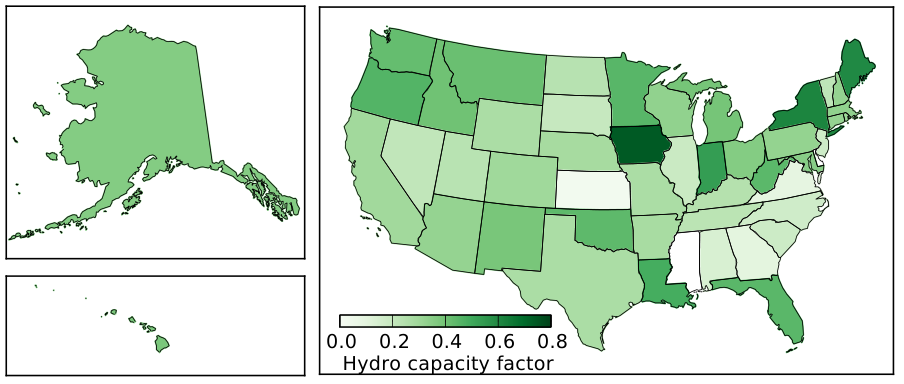

Finally, for completeness, we look at the capacity factors of hydroelectric installations, by state. The total installed capacity in the database used for these plots is 77.6 GW spread among 1,317 dams, while producing an annual average of 28.1 GW—corresponding to an overall capacity factor of 0.36. Figure 11.8 shows how this distributes around the country. Since the Pacific Northwest dominates in installed hydroelectric power, it largely determines the overall capacity factor. Iowa stands out as having a high capacity factor, but only has 0.153 GW of installed capacity.^[27] Contrast this to Washington, having an installation capacity of 20.7 GW.$^{28}$

11.4 Global Hydropower¶

This section provides a brief snapshot of hydroelectric production globally, which we saw at the end of Section 11.2.1 amounts to 477 GW. Figure 11.9 shows which countries have the most hydroelectricity, the corresponding numbers appearing in Table 11.2—including the percentage of electricity derived from hydroelectric sources within the country. Notice that Norway, Venezuela, Brazil, and Canada derive more than half their electricity demand from hydroelectricity. Keep in mind that electricity is not the whole energy story for a country, as Fig. 7.2 (p. 110) made clear.

11.5 Upshot: Pros and Cons of Hydro¶

The two lists below provide some pros and cons to hydroelectric power that are relevant to our assessment of its value to our mix of renewable energy options. First, the positive attributes:

• Natural source, solar-driven, without waste products or pollution;^[29]

• Technologically simple, therefore straightforward to implement and maintain;

• High efficiency, turning 90% of available energy into useful electricity;

• Good baseline of steady power over daily timescales;^[30]

• Life-cycle CO$_{2}$ emissions only 4% that of traditional fossil fuel electricity [68];

• Facilities^[31] can last a century or longer;

• While not directly related to energy, dams can provide flood control and reliable water supplies.

And some of the downsides that may discourage further development:

• Silt can build up behind dams displacing the reservoir, eventually rendering them useless and dangerous;

• Requires the semi-permanent flooding of an ecological habitat, of varying quality and value;

• Seasonal variability of available power, often by a factor of ten;

• Defunct or poorly maintained facilities represent a dam-burst danger to downstream residents;

• Blocks salmon runs and impacts the health of both oceanic and forest ecosystems;

• As the distribution maps show, hydroelectric is not a viable option everywhere: the combination of terrain^[32] and rainfall is needed.

On balance, our society has embraced hydroelectricity as a clean and reliable resource. One can view it as nature’s low-hanging fruit, partly evidenced by how early it was adopted on a large scale. It is likely to remain an attractive form of energy as we face increasing pressures to migrate away from carbon-based fuels.^[33] It will not, however, be able to provide an avenue for wholesale replacement of fossil fuels given its limited scale and electric-only nature. Only if our overall energy demand is reduced substantially will it form a large fraction of our portfolio.

11.6 Problems¶

1. If a 70 kg person climbs 10 flights of stairs, each flight 3 m high, how much potential energy have they gained?

2. If an 80 kg person is capable of delivering external mechanical energy at a rate of 200 W sustained over several minutes,^[34] how high would they be able to climb in two minutes?

3. A 10 kg box is lifted 2 m off the floor and placed on a frictionless horizontal conveyor to take it 30 m across a warehouse. At the end of the conveyor, it is lowered 1 m where it ends up on a shelf.^[35]

   How much net gravitational potential energy was given to the box from the start to the end of the process?

4. A standard AA battery cell stores about 13.5 kJ of energy. At a mass of 23 g each, how high would you have to lift the battery to get the same amount of gravitational potential energy?

5. A gallon of gasoline contains about 130 MJ of chemical energy at a mass of around 3 kg. How high would you have to lift the gallon of gasoline to get the same amount of gravitational potential energy? Compare the result to the radius of the earth.

6. Problem 5 used one gallon of gasoline to compute the equivalent height for gravitational potential energy. Does the result depend on what volume of gasoline we selected? Make an airtight argument as to why or why not. Solving symbolically^[36] may be a helpful route—but not the only one.

7. A typical American household uses approximately 30 kWh per day of electricity. Convert this to Joules and then imagine building a water tank 10.8 m above the house^[37] to supply one day’s worth of electricity.^[38] How much mass of water is this, in kg? At a density of 1,000 $\mathrm{kg/m}^{3}$, what is the volume in cubic meters, and what is the side length of a cube^[39] having this volume? Take a moment to visualize (or sketch) this arrangement.

8. The biggest hydroelectric installation in the U.S. is the Grand Coulee dam on the Columbia River. The enormous flow rate reaches its maximum at 4,300 $\mathrm{m}^{3}/\mathrm{s}$, and the dam (reservoir) height is 168 m. At an efficiency of 90%, at what rate is this dam capable of producing hydroelectric power (in $\mathrm{GW}^{40})$? Don’t forget the density of water and that $g \approx 10 \mathrm{m/s}^{2}$.

9. The Hoover Dam (also called Boulder Dam) on the Colorado River is rated at 2.08 GW when the flow is at its maximum rate of 1,280 $\mathrm{m}^{3}/\mathrm{s}$. How high is the reservoir if the efficiency of the installation is 90%?

10. A dam 50 meters high is constructed on a river and is delivering 180 MW at some moment in time. What is the flow rate of water, in cubic meters per second, if the facility converts gravitational potential energy into electricity at 90% efficiency?

11. A hydroelectric facility is built to deliver a peak power of 1 GW, which it manages to do for three months of the year during the spring snow-melt. But for three months in summer, it drops to 700 MW, then 500 MW for three months in fall. In winter, it drops way down to 200 MW for three months. Using the concept of the capacity factor (Definition 11.2.1), what is the annual average capacity factor for this facility?

12. While the Chief Joseph Dam on the Columbia River can generate as much as 2.62 GW $(2.62 \times 10^{9}$ W) of power at full flow, the river does not always run at full flow. The average annual production is 10.7 TWh per year $(10.7 \times 10^{12}$ Wh/yr). What is the capacity factor of the dam: the amount delivered vs. the amount if running at 100% capacity the whole year?

13. The Robert Moses Niagara dam in New York is rated at 2,429 $\mathrm{MW}^{41}$ and has a high capacity factor of 0.633. How many kWh does it produce in an average day, and how many homes would this serve at the national average of 30 kWh/day?

14. The Robert Moses Niagara dam from Problem 13 is 30 m high. What is the peak flow rate, in $\mathrm{m}^{3}/\mathrm{s}$, if it can produce full capacity power (2.43 GW electrical output) while converting gravitational potential energy to electricity at 90% efficiency?

15. It takes 2,250 J to evaporate each gram of water, while only taking about 330 J to raise the temperature of water from room temperature to the boiling point. If it takes 10 minutes to bring a pot of water from room temperature to boiling, how much additional time will it take to boil off (evaporate) all the water if injecting energy at the same rate the whole time?

16. Starting at 44,000 TW of solar input to the hydrologic cycle, parallel the development in Section 11.2.1 by computing the power remaining at each stage^[42] if, for each gram of water:

a) water is evaporated and lifted to 5 km height;^[43] b) 30% of the water falls on land where collection is possible; c) the typical land height is 800 m; d) only 20% of the water makes it to dammable locations; e) only 50 m of height (of the original 800 m average) is left for the dam.

By this analysis, how much hydroelectric power is theoretically possible, globally?

17. Fig. 10.1 (p. 174) indicated that about 44,000 TW globally goes into evaporating water. We can turn this into an estimate of how much rain we expect per year, on average. The simplest way to do this is to think of a single square meter of ocean surface, receiving an average evaporation input power of 120 W.^[44] Each millimeter of of water depth across our square meter has a volume of 1 L, or a mass of 1 kg. At a steady input of 120 W,^[45] how many millimeters of water are drawn off in a year? That same amount will come back down somewhere as precipitation.
